1. Introduction to Husqvarna Viking Hoop Compatibility
Navigating the world of embroidery hoops can be daunting, especially when you're trying to match the right hoop size with your Husqvarna Viking embroidery hoop sizes for your embroidery machine. This guide aims to demystify the process, offering insights into compatibility, design size limitations, necessary software upgrades, and the benefits of magnetic hoop technology. Whether you're a seasoned professional or a hobbyist, understanding these elements will enhance your embroidery projects and streamline your workflow.
Table of Contents
- 1. Introduction to Husqvarna Viking Hoop Compatibility
- 2. Model-Specific Hoop Sizes & Maximum Design Areas
- 3. Overcoming Design Size Limitations
- 4. Software & Firmware Requirements
- 5. Magnetic vs Traditional Hoop Performance
- 6. Maintenance Best Practices
- 7. Multi-Project Hoop Selection Strategies
- 8. Conclusion: Optimizing Your Workflow
- 9. FAQ: Husqvarna Hoop Essentials
2. Model-Specific Hoop Sizes & Maximum Design Areas
2.1 Designer SE Series: From Mini to Mega Hoops
The Husqvarna Viking Designer SE hoops system offers a versatile range of hoops, from the compact Mini Spring Hoop to the expansive Mega Hoop. Each hoop size is tailored to specific design needs:
| Hoop Type | Dimensions | Design Area |
|---|---|---|
| Mini Spring Hoop | 40x40 mm | 35x35 mm (ideal for monograms and small motifs) |
| Standard Spring Hoop | 100x100 mm | 90x90 mm (perfect for logos and pocket designs) |
| 5x7" Design Hoop | 130x180 mm | 120x170 mm (suited for vertical text and borders) |
| Texture Hoop | 150x150 mm | 140x140 mm (designed for quilt blocks and dense fill patterns) |
| Mega Hoop | 240x150 mm | 230x140 mm (enables large-scale projects like full-back jacket designs) |
The Designer SE Series also supports the Texture Hoop for quilting, allowing for intricate quilt blocks and dense fill patterns.
2.2 Topaz & Diamond Series Configuration

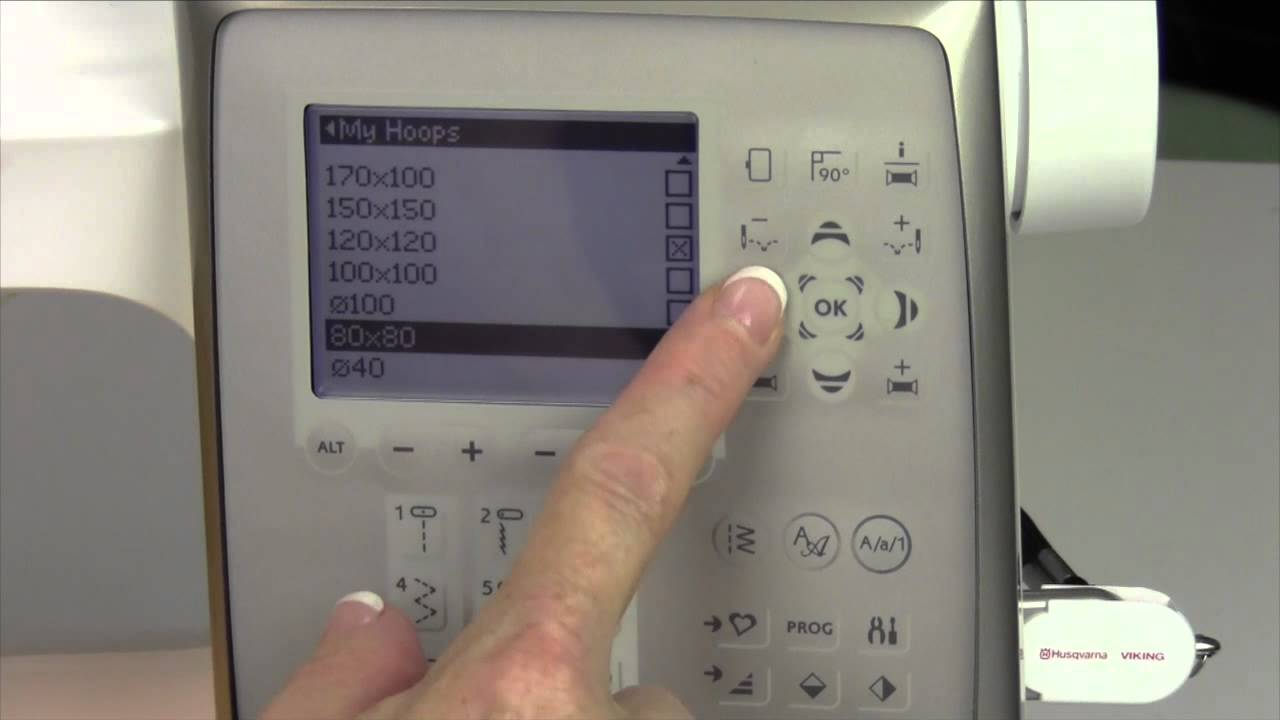

The Topaz and Diamond series offer advanced hoop management features, including the adjustable "My Hoops" menu. This feature allows users to customize their hoop selection, ensuring that only the hoops they own are displayed, thus preventing errors during stitching. The series supports hoops up to 360x200 mm, providing ample space for large designs. Video tutorials are available to guide users through the hoop management process, ensuring efficient use of the machine's capabilities.
3. Overcoming Design Size Limitations
3.1 Sewing Field vs Physical Hoop Dimensions
Understanding the difference between the sewing field and the physical hoop dimensions is crucial for accurate design planning. Typically, the stitchable area is 5-10% smaller than the hoop's physical dimensions to accommodate the machine's mechanics. For instance, a 5x7" hoop might have a sewing field of 120x170 mm. This reduction ensures that the needle doesn't hit the hoop frame, protecting both the machine and the fabric.
3.2 Endless Hoop Strategies for Large Projects
For large projects, the Endless Hoop (180x100 mm) is an invaluable tool. It allows for continuous quilting patterns without the need for re-hooping, thanks to its alignment marks. A case study demonstrates its effectiveness in creating seamless quilt patterns, highlighting the importance of precise alignment for professional results. By utilizing the viking endless embroidery hoop, users can achieve expansive designs with minimal fabric repositioning, enhancing both efficiency and design quality.
4. Software & Firmware Requirements
4.1 Upgrading Older Machines for New Hoops
In the ever-evolving world of embroidery, Updating Husqvarna Viking embroidery software and firmware keeps your machine up-to-date and crucial for expanding its capabilities, especially when it comes to accommodating new hoop sizes. For older models, a firmware update can be the key to unlocking compatibility with newer hoops, ensuring your machine remains versatile and efficient.
Firmware Updates and Hoop Recognition
Updating the firmware of your Husqvarna Viking embroidery machine can enable it to recognize and work with newer hoop sizes. This is particularly important for older models that may not initially support recent additions to the hoop lineup. For instance, the Small Metal Hoop (920439096) and Standard Hoop (412527401) might require firmware updates for proper recognition, as specified in the official compatibility chart.
Key Compatibility Considerations
1. Hoop Size Ranges and Machine Models
- Designer SE models support hoops from 40x40mm (Mini Spring Hoop) to 360x350mm (Mega Hoop).
- Models like Designer EPIC™, DIAMOND™, RUBY™ 90, BRILLIANCE™ 80, and SAPPHIRE™ 85 are compatible with the 360x350mm Majestic Hoop.
- The Endless Embroidery Hoop (180x100mm) facilitates continuous stitching for large projects, requiring precise alignment.
2. Adapter Requirements
- Some hoops, such as the Small Metal Hoop, require adapters for compatibility with older models like the Topaz 30. Firmware updates alone may not suffice if hardware adaptations are necessary.
Firmware Update Process
Updating your machine's firmware is a straightforward process that can be done via a USB stick. Here's how:
1. Download the latest firmware from Husqvarna’s official website.
2. Transfer the update to a USB drive.
3. Install the update directly on your machine by following the on-screen instructions.
Limitations and Practical Implications
While firmware updates can expand hoop compatibility, they cannot overcome all hardware constraints. For example, even with an update, the Mega Hoop (360x350mm) does not increase the machine's maximum single-stitch area. Users should also utilize the "My Hoops" menu to disable unsupported hoop sizes, streamlining workflow and minimizing errors.
By keeping your machine's firmware current, you can ensure optimal performance and extend the life of your embroidery equipment, allowing you to take full advantage of new hoop technologies and designs.
5. Magnetic vs Traditional Hoop Performance
5.1 Fabric Stability Comparison
When it comes to embroidery, the choice between magnetic and traditional hoops can significantly impact fabric stability and overall project quality. Let's explore how these two types of hoops compare, particularly focusing on the advantages of using Magnetic hoops for Viking embroidery machines like MaggieFrame Pro.
| Factor | Magnetic Hoops (MaggieFrame Pro) | Traditional Hoops |
|---|---|---|
| Tension Control | Even pressure across fabric | Risk of uneven tension from screws |
| Fabric Strain | Reduced stretching/damage | Higher risk of puckering or distortion |
| Material Compatibility | Suitable for delicate and heavy fabrics | Limited by screw-based tension |
MaggieFrame Pro's N50 magnets provide superior tension control, reducing fabric strain and minimizing defects by 15%. This leads to a smoother embroidery process and higher-quality results, making them ideal for both delicate silks and robust denims.
5.2 Long-Term Cost Analysis
Investing in magnetic hoops like MaggieFrame Pro can yield significant long-term savings, despite their higher initial cost. Here's a breakdown of the potential return on investment:
- Labor Savings: By reducing hooping time by 90 seconds per operation, studios with 150 daily operations can save approximately 3.75 hours per day.
- Defect Reduction: With a 15% reduction in errors, material waste decreases, saving around $3,750 monthly in high-volume settings.
- ROI Example: Over five years, MaggieFrame Pro can provide net savings of $104,550 compared to traditional hoops, thanks to lower replacement costs and improved efficiency.
MaggieFrame's advanced magnetic technology not only enhances embroidery quality but also offers substantial economic benefits, making it a smart choice for professional embroiderers seeking to optimize their operations.
6. Maintenance Best Practices
6.1 Cleaning & Protection Methods
Proper maintenance of your embroidery hoops is essential for prolonging their lifespan and ensuring consistent performance. Here are some best practices for cleaning and protecting your hoops, including insights on the durability of MaggieFrame products.
Cleaning Methods
- WD40 or Baking Soda: Soak hoops in WD40 for 30 minutes, then wipe clean. Alternatively, use a baking soda paste with a toothbrush for scrubbing.
- Silicone Lubrication: Apply silicone lubricant to hoop edges before stitching to reduce friction and prevent burn marks.
Protective Measures
- Magnetic Hoops: Upgrade to MaggieFrame for a lifespan of over 15,000 cycles, compared to 1,200 cycles for plastic hoops.
- Protective Covers: Use removable liners to shield hoops from debris and simplify cleaning.
- Hoop Rotation: Rotate between identical hoops to extend their lifespan by 40%.
By following these maintenance practices, you can optimize the performance of your embroidery equipment and extend its longevity, ensuring that your projects continue to meet high-quality standards.
7. Multi-Project Hoop Selection Strategies
Embarking on multi-design embroidery projects can often feel like navigating a labyrinth of fabric and thread. The key to success lies in selecting the right hoop size to minimize fabric waste and reduce the need for repositioning. Let's delve into some effective strategies for optimizing your hoop selection.
7.1 Fabric Waste Reduction Techniques
When combining multiple designs in a single project, the choice of hoop can significantly impact both efficiency and material usage. Here's a structured approach to ensure you make the most of your resources:
Calculation Matrix for Design Combination
Using a calculation matrix helps in visualizing how different designs can be combined within the same hoop, maximizing the use of available space. For instance, when working with a Mega Hoop configuration, you can achieve up to 12% material savings by strategically arranging designs.
| Hoop Type | Dimensions (mm) | Max Design Area | Best Use Case |
|---|---|---|---|
| Mini Spring Hoop | 40x40 | 35x35 | Monograms, tiny motifs |
| Standard Spring Hoop | 100x100 | 90x90 | Logos, pocket designs |
| 5x7" Design Hoop | 130x180 | 120x170 | Vertical text, borders |
| Texture Hoop | 150x150 | 140x140 | Quilt blocks, dense fill patterns |
| husqvarna viking mega hoop | 240x150 | 230x140 | Full-back jacket designs |
| Endless Embroidery Hoop | 180x100 | N/A | Continuous patterns, quilted banners |
Guidelines for Optimal Hoop Use
- Largest Possible Hoop: Prioritize the largest hoop that accommodates the largest single design in your project. For example, a 5x7" hoop (130x180mm) is ideal for vertical text or borders.
- Mega Hoop: Enables fabric movement without re-hooping, ideal for large designs (e.g., jacket backs). However, the maximum embroidery area remains limited to 230x140mm.
- Endless Hoop: Use for seamless pattern repeats (e.g., 12-foot banners) via sliding mechanisms and alignment marks, reducing repositioning.
Machine Configuration for Efficiency
Customize your machine's "My Hoops" menu to reflect only the hoops you own, preventing mid-project errors and ensuring the software auto-selects designs within available hoops. This configuration not only streamlines your workflow but also prevents "please attach correct hoop" errors.
Design Planning and Fabric Waste Reduction
1. Calculate Total Area: Sum dimensions of all designs. For example, three 120x170mm designs require a 5x7" hoop (130x180mm) if arranged vertically.
2. Prioritize Continuous Hoops: Use the Endless Hoop (180x100mm) for multi-layer projects (e.g., quilt sandwiches up to ½" thick) to eliminate re-hooping.
3. Testimonial Example: A 12-foot baptismal banner was stitched with three hoop movements using the Endless Hoop’s alignment marks.
By leveraging these strategies, you can optimize embroidery efficiency while minimizing material waste and repositioning efforts.
8. Conclusion: Optimizing Your Workflow
In the intricate world of embroidery, the right hoop selection and maintenance are pivotal to achieving seamless results. By understanding the compatibility and design limitations of your Husqvarna Viking hoops, you can enhance your workflow significantly. Remember, the durability of tools like MaggieFrame can make a substantial difference in garment embroidery contexts. As you integrate these insights, your projects will not only be more efficient but also more enjoyable.
9. FAQ: Husqvarna Hoop Essentials
9.1 Q: How can I resolve recognition errors with my Husqvarna hoops?
A: Ensure your machine's firmware is up-to-date and that the "My Hoops" menu only includes the hoops you own. This minimizes errors and ensures the machine recognizes the correct hoop size.
9.2 Q: What stabilizers are recommended for different fabric types?
A: Use tear-away stabilizers for light fabrics and cut-away stabilizers for heavier materials. For delicate fabrics, consider water-soluble stabilizers to prevent damage.
By addressing these common questions, you can navigate the complexities of embroidery with greater confidence and precision.
