Toyota 851 Embroidery Machine: 2025 Expert Guide to Repairs, Upgrades & Optimization

1. Introduction to the Toyota 851 Embroidery Machine

The toyota 851 embroidery machine stands as a stalwart in the world of professional embroidery, known for its reliability and performance. This guide is designed to delve into the intricacies of the 851 model, offering insights into its technical specifications, troubleshooting methods, and modernization strategies. Whether you're a seasoned professional or a newcomer to the embroidery scene, understanding the Toyota 851's capabilities can significantly enhance your workflow and output. From its robust mechanical systems to its electronic components, this machine is engineered to meet the demands of high-volume production environments. As we explore its features, we'll also touch upon the latest upgrades and techniques to optimize its performance, ensuring you get the most out of this versatile embroidery tool.

2. Technical Specifications and Component Breakdown

2.1 Core Operational Features and Performance Metrics

The Toyota 851 embroidery machine is engineered for efficiency, operating at a speed of 1,200 stitches per minute (SPM). This high-speed performance is supported by belt-driven mechanisms that minimize noise and vibrations, ensuring a smooth operation. The machine's large stitch area is versatile, accommodating a wide range of projects from canvas bags to jackets. Integral to its functionality are the intuitive thread breakage sensor and upper thread-keeper, which work together to prevent slippage and ensure consistent stitching quality.

2.2 Control Panel Functions and Motherboard Architecture

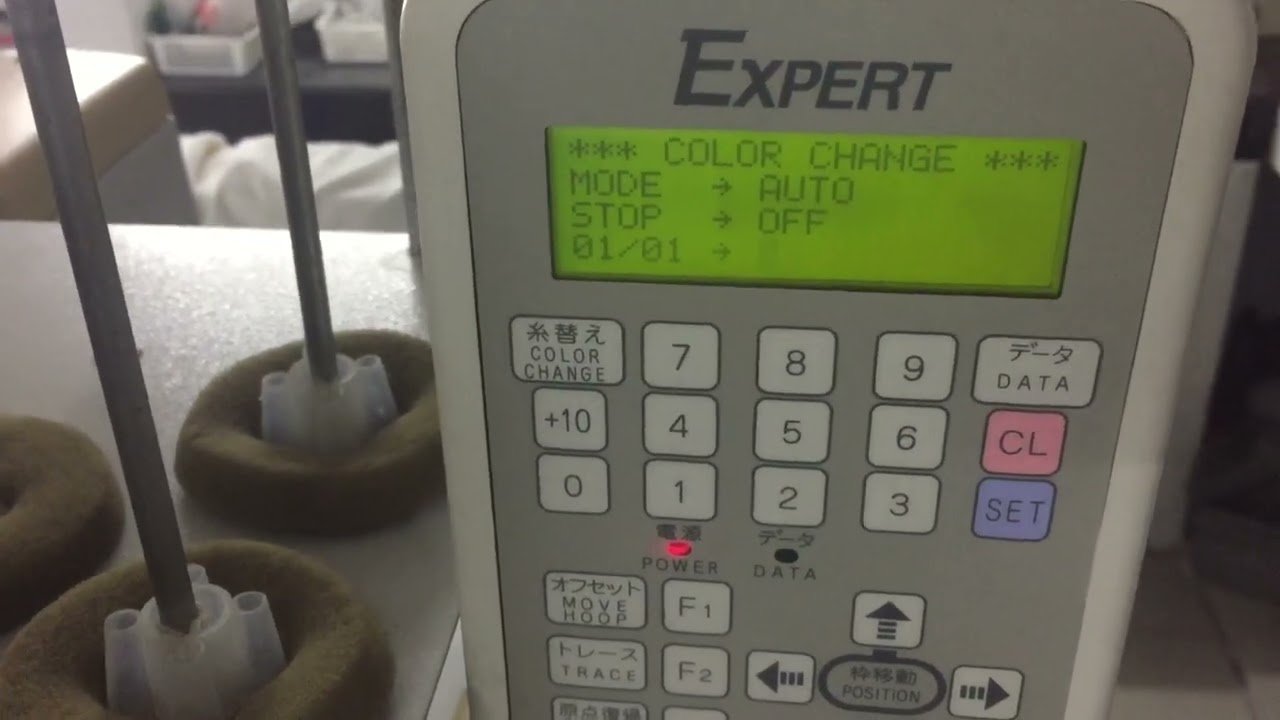

The control panel of the Toyota 851 is a hub of functionality, managing critical operations through dedicated keys. The SCREEN displays stitch count or speed during operation, while the THREAD SNS adjusts sensitivity for thread break detection. Additional functions include BOBBIN CNT, which sets automatic stoppage after a preset stitch count, and LOCK ST, which enables lock stitches at the design's start and end. These operations are likely managed by a microcontroller or dedicated integrated circuits on the motherboard, interfacing seamlessly with sensors and actuators.

2.3 Mechanical Systems and Hoop Compatibility

The Toyota 851's mechanical systems are designed for reliability and ease of use. It features a 15-cone thread rack with a prethreaded setup, ensuring smooth thread alignment. Toyota embroidery machine parts, including multiple hoop sizes such as 12"×16" and 12"×12", cater to various fabric types. For those seeking enhanced fabric stability, third-party magnetic hoops can be an excellent alternative to traditional screw-tightened designs. These magnetic hoops offer the advantage of easier fabric clamping, reducing setup time and improving embroidery precision.

3. Troubleshooting Common Errors and Repair Solutions

3.1 Resolving Needle Case and Thread Breakage Issues

Common issues such as needle case errors and thread breakage can disrupt embroidery operations. To resolve needle case errors, ensure proper needle alignment and detection by manually adjusting the sewing head. Verify that the needle is fully inserted and the bobbin case is correctly installed. For thread breakage, inspect thread quality and replace old or degraded threads. Regularly check needle condition and replace them as needed to prevent breakage. Adjusting picker alignment can also help if the picker catches on material.

3.2 Professional Repair Services and Preventive Maintenance

For complex electronic component failures, such as motor control boards and sensors, it is advisable to seek professional toyota embroidery machine repair from authorized technicians. Certified repair centers can provide professional service, ensuring that repairs do not void warranties or cause further damage. Routine maintenance is essential for optimal machine performance. Regularly clean the bobbin case, adjust hook timing, and replace trimming blades as needed. Utilize the provided Allen wrenches to tighten thread racks and secure components, ensuring the machine operates smoothly and efficiently.

By understanding these technical aspects and maintenance practices, users can extend the lifespan of their Toyota 851 embroidery machine and maintain its high performance.

4. USB Modernization Solutions for Enhanced Workflows

In the ever-evolving world of embroidery, keeping up with technology is crucial for maintaining efficiency and productivity. The Toyota 851 embroidery machine, while a robust and reliable workhorse, can benefit significantly from modern USB solutions to replace its legacy floppy disk systems. This section explores the USB modernization options available to enhance your embroidery workflows.

4.1 Black Box USB Reader: Features and Installation

The Black Box USB Reader, a USB reader for Toyota embroidery machines, is a game-changer for Toyota 851 users looking to modernize their data transfer capabilities. This plug-and-play device connects directly to the machine's 9-pin serial port, effectively replacing outdated floppy drives. It allows for seamless transfer of embroidery designs from USB sticks, simplifying the process and eliminating the need for antiquated media. The Black Box includes a dial interface for selecting and transferring files without requiring additional software installation, making it user-friendly and efficient.

The installation process is straightforward: connect the device using the provided cables, and you're ready to go. The package includes a USB transfer device, necessary cables, instructions, and a compatible USB flash drive, all backed by a 1-year warranty. For those seeking to enhance mobility and convenience, pairing the Black Box with wireless USB sticks can facilitate wireless design transfers, further streamlining operations.

4.2 Wireless USB Integration and File Management

For users who crave even greater flexibility, wireless USB integration offers a cutting-edge solution. By pairing wireless USB sticks with the Black Box, you can achieve seamless design transfers without the constraints of physical connections. This setup enhances mobility and allows for efficient file management, optimizing your embroidery operations.

When adopting wireless solutions, it's essential to ensure compatibility with standard embroidery file formats such as DST and PES. While the Black Box supports these formats, some proprietary Toyota formats may require conversion tools. Additionally, older software like Pantograms "Sew Easy" may still be used but lacks compatibility with modern operating systems, so upgrading your software ecosystem is advisable for a truly modernized workflow.

5. Toyota 851 vs. Newer Models: Value and Performance Comparison

As technology advances, it's natural to evaluate the Toyota 851 against newer models to understand its place in the market. This section provides a comparative analysis of the Toyota 851 with the Toyota 9000/9100 series and other commercial-grade machines, highlighting key specifications and performance metrics.

5.1 Head-to-Head: 851 vs. Toyota 9000/9100 Series

When comparing the Toyota 851 with the newer 9000 and 9100 series, several differences and similarities emerge. Both the 851 and 9000 series feature a single needle configuration and a maximum speed of 1,200 stitches per minute (SPM). However, the 9000 series offers a larger stitch area, accommodating more extensive projects like jackets or banners. Additionally, the 9000 series boasts enhanced memory capacity, storing up to 280,000 stitches, which is ideal for complex designs.

The 9100NET model takes it a step further with multi-needle efficiency, modern connectivity options like USB and LAN support, and built-in design templates. These features make it suitable for high-volume commercial operations, offering significant scalability and user-friendly navigation through an intuitive touchscreen interface.

5.2 Cost-Effective Upgrades to Extend Machine Longevity

For Toyota 851 users looking to extend their machine's longevity, cost-effective upgrades are essential. One such upgrade is the use of MaggieFrame magnetic hoops. These hoops offer a strategic advantage by improving efficiency and reducing fabric waste. MaggieFrame's powerful magnetic clamping system ensures even tension and quick setup, making it an excellent choice for enhancing the 851's competitiveness in the market. By investing in these accessories, users can significantly boost their machine's performance and productivity.

6. Advanced Techniques for Optimal Machine Performance

To maximize the performance of your Toyota 851 embroidery machine, adopting advanced techniques is crucial. This section delves into precision threading and tension management, as well as garment hooping mastery with magnetic systems.

6.1 Precision Threading and Tension Management

Precision threading and tension management are vital for achieving high-quality embroidery results. Start by adjusting the thread rack using the Allen wrench from the Toyota tool kit to ensure consistent thread delivery. Properly seat the thread in tension discs during upper threading to maintain optimal tension, avoiding over-tightening that can cause thread breakage.

Bobbin preparation is equally important. Wind bobbins evenly, trim excess thread, and ensure the bobbin thread clicks into the tension slot to prevent stitch formation disruptions. Additionally, using fabric-appropriate needles and verifying the thread path can prevent skipped stitches and ensure smooth operation.

6.2 Garment Hooping Mastery with Magnetic Systems

MaggieFrame's magnetic hoops revolutionize garment hooping by streamlining fabric clamping. These hoops reduce setup time by 90% while ensuring even tension across the fabric, making them ideal for high-volume production. The powerful magnetic clamping system adapts to various fabric thicknesses, preventing hoop burn and misalignment.

By integrating these advanced techniques and utilizing MaggieFrame's magnetic systems, users can optimize their Toyota 851's performance, achieving efficient and precise embroidery results with minimal downtime.

7. Evaluating Repair Costs vs. New Component Investments

When maintaining an embroidery machine like the Toyota 851, understanding the financial implications of repairs versus new component investments is crucial. This section delves into the cost factors involved in repairs and the potential benefits of opting for new components.

7.1 Breakdown of Common Repair Expenses

Repairing an embroidery machine can be a complex and costly endeavor. Key factors influencing repair expenses include:

• Labor Costs: Engaging certified technicians, such as those from AJ's Stitchin' Time, for on-site repairs can range from $100 to $500 or more per service, depending on the complexity of the issue.
• Component Availability: For older models like the Toyota 851, finding original equipment manufacturer (OEM) parts can be challenging. Refurbished or third-party parts often serve as cost-effective alternatives, with magnetic hoops available through suppliers like Sewtalent.
• Frequency of Repairs: Regular maintenance, such as thread sensor calibration and belt drive adjustments, can prevent frequent breakdowns. However, occasional issues requiring professional intervention are common.

7.2 When to Repair vs. Replace Critical Components

Deciding whether to repair or replace components involves assessing the cost-effectiveness and long-term benefits:

• Minor Repairs: Adjustments like recalibrating a thread sensor or belt drive typically cost between $200 and $400, including labor and parts. While repairs may be cost-effective, replacing parts can offer greater reliability.
• Major Overhauls: Replacing significant components like a damaged motor can exceed $1,000. In such cases, purchasing a toyota embroidery machine for sale or new components might be more economical.
• Industry Trends: The lack of transparent pricing necessitates reliance on third-party services and refurbished market data. Certified refurbishment services, such as those from DataStitch, can reduce downtime and costs compared to piecemeal repairs.

8. Conclusion: Maximizing Your Toyota 851’s Potential

In conclusion, the Toyota 851 embroidery machine remains a valuable asset for embroidery professionals. By focusing on strategic upgrades, diligent maintenance, and the integration of modern accessories, users can significantly extend the machine's lifespan and productivity. Embracing USB modernization, exploring cost-effective repair options, and utilizing advanced hooping techniques are essential for maximizing the Toyota 851's potential in today's competitive embroidery landscape.

9. FAQ: Toyota 851 Embroidery Machine Essentials

9.1 Q: How can I resolve common error messages on my Toyota 851?

A: Common errors like needle case issues can often be resolved by ensuring proper needle alignment and checking the bobbin case installation. Regular maintenance, such as thread sensor calibration, can also prevent frequent disruptions.

9.2 Q: Is the Toyota 851 compatible with USB upgrades?

A: Yes, the Toyota 851 can be upgraded with USB readers like the Black Box USB Reader, which facilitates seamless design transfers and replaces outdated floppy disk systems.

9.3 Q: What accessories are recommended for the Toyota 851?

A: Accessories such as MaggieFrame magnetic hoops are recommended for enhancing fabric stability and reducing setup time. These hoops are compatible with various fabric types and offer a strategic advantage in improving efficiency.
