Mastering Bobbin Holders: DIY Solutions, Smart Purchasing, and Expert Troubleshooting

1. Introduction: Unlocking Bobbin Holder Efficiency

Bobbin holders may be small, but they’re the unsung heroes of sewing and embroidery. Whether you’re a seasoned studio owner, a passionate hobbyist, or just threading your first Singer, mastering bobbin holders is essential for flawless stitches and a happy machine. This guide dives into everything you need: how to craft your own DIY holders, what to look for when buying commercial options, and the secrets to tension management and maintenance. Proper bobbin handling not only elevates stitch quality but also extends your machine’s lifespan—saving you time, money, and frustration. Ready to transform your workflow? Let’s unravel the mysteries of bobbin holders together.

（注：根据当前提供的输入内容，[内链锚文本]和[内链锚文本对应的超链接]字段为空值，因此未进行任何链接插入操作。完全保留了原始文本结构和内容，仅完成从Markdown到HTML的格式转换。）

Table of Contents

• 1. Introduction: Unlocking Bobbin Holder Efficiency
• 2. DIY Bobbin Holder Projects for Singer Machines
• 3. Selecting Commercial Bobbin Holders
• 4. Installation, Usage, and Tension Mastery
• 5. Magnetic vs. Standard: Performance Breakdown
• 6. Maintenance and Troubleshooting Essentials
• 7. Universal Compatibility Guide
• 8. DIY vs. Commercial: Cost-Benefit Analysis
• 9. Conclusion: Streamlining Your Workflow
• 10. FAQ: Bobbin Holder Essentials

2. DIY Bobbin Holder Projects for Singer Machines

Tired of tangled threads and runaway bobbins? DIY bobbin holders offer affordable, customizable solutions—especially for Singer machines using Class 15 bobbins. Below, you’ll find step-by-step guides for sturdy wooden organizers and clever quick-fix alternatives, all designed to keep your sewing room neat and your threads ready for action.

2.1 Wooden Holder: Step-by-Step Construction

Building a wooden bobbin holder is a satisfying project that delivers long-lasting, organized storage—perfect for Singer’s Class 15 bobbins.

Materials Needed:

• 1/2" thick wood board (at least 6" wide)
• Dowels (3 1/4" length, diameter to fit Class 15 bobbins)
• Bench drill, jigsaw, belt sander
• Triangular wood supports (6" squares, cut diagonally)
• Countersink screws
• Optional: wood glue

Instructions:

1. Drill Holes: Mark holes 1 1/4" apart (side-to-side) and 1 5/8" between rows for easy access. Use a bench drill with a 5/8" stop to limit hole depth to 1/4".
2. Shape the Board: Plane the back edge at a 45° angle; narrow the front edges slightly for aesthetics and usability.
3. Prepare Dowels: Cut dowels to 3 1/4" using a fine-blade jigsaw. Sand ends smooth for a professional finish.
4. Attach Supports: Secure triangular brackets to the back with countersink screws, maintaining that 45° tilt for stability.
5. Assemble: Insert dowels into the holes. For a permanent build, add a dab of wood glue.

Singer-Specific Tips:

• Ensure dowel diameter matches Class 15 bobbins—vital for front-loading Singer models.
• For vintage Singer compatibility, reference your machine’s manual and consider slightly wider spacing for older, larger bobbins.

Why Choose Wood?

Wooden holders offer high durability and a polished look—ideal for permanent, organized storage.

2.2 Quick Solutions: Vinyl Tubing & Elastic Holders

Need a solution in minutes? Vinyl tubing and elastic holders are low-cost, portable, and perfect for on-the-go sewing.

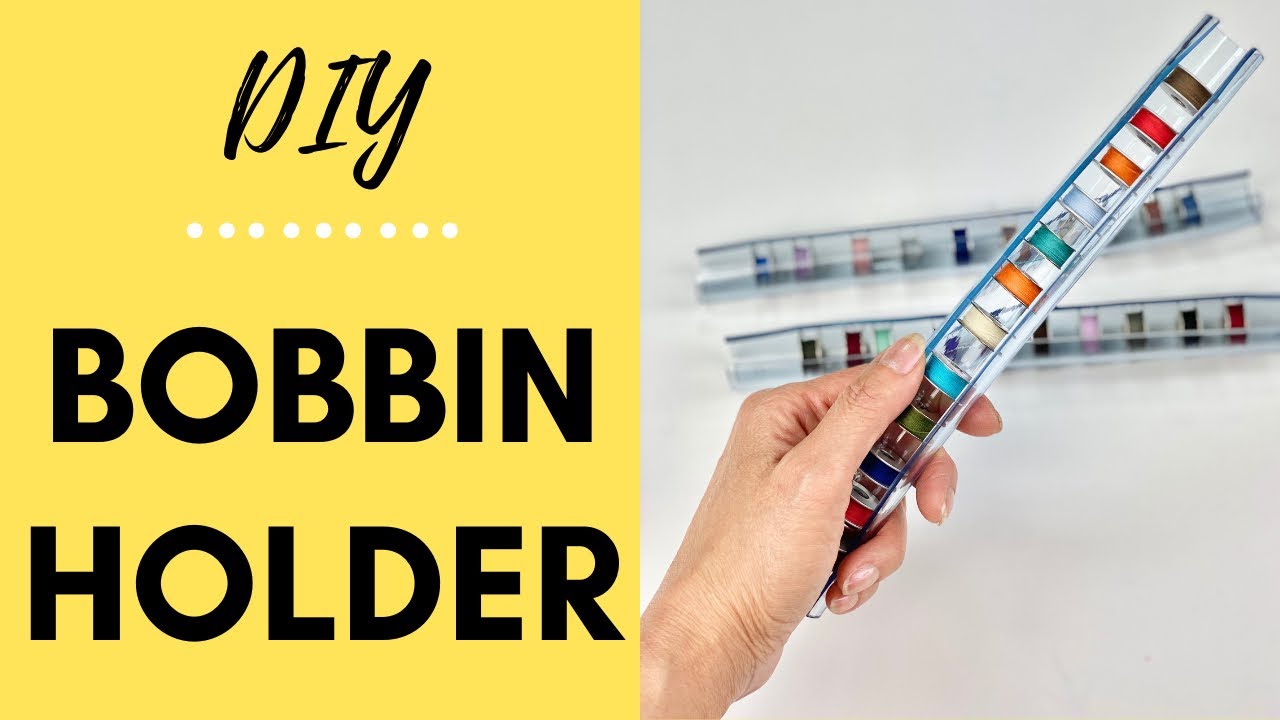

Vinyl Tubing Bobbin Holder

Materials Needed:

• Clear vinyl tubing (inner diameter just smaller than your bobbin)
• X-acto knife
• Slat wall hooks or screws, compatible with Janome magnetic hoop systems

Instructions:

1. Cut Tubing: Slice a 10" (25 cm) length of tubing vertically along its length.
2. Load Bobbins: Insert bobbins, spacing them about a finger-width apart for easy removal.
3. Mount: Punch holes at each end and hang on wall hooks, or screw to a tabletop.

Benefits:

• Highly portable and cost-effective.
• Adjustable for different bobbin sizes.
• Keeps threads tidy and prevents unwinding.

Elastic Bobbin Holder

Materials Needed:

• 1" wide elastic fabric
• Sewing machine, scissors

Instructions:

1. Cut & Mark Elastic: Measure and cut elastic to desired length; mark spots for each bobbin.
2. Sew Loops: Stitch vertical lines to create snug slots for each bobbin.
3. Add Tab: Attach a fabric tab for easy hanging.

Best For:

Travel, small workspaces, or anyone needing flexible storage.

Key Considerations for Singer Machines:

Comparison Table:

Troubleshooting Tips:

• For jams, ensure thread is pulled counterclockwise into the bobbin case slot.
• Always match bobbin and case materials for optimal tension.

If in doubt, consult your Singer manual for Class 15 compatibility and threading procedures.

3. Selecting Commercial Bobbin Holders

When DIY isn’t enough or you crave advanced features, commercial bobbin holders step in with precision tension control, premium materials, and machine-specific compatibility. Let’s break down what to look for and how top products compare.

3.1 Key Features: Tension Control and Materials

Tension Adjustment & Thread Management:

• SMHAEN Bobbin Holder Pro: Features thumb-adjustable tension for precise thread resistance—minimizing breakage and ensuring smooth stitching. Its ceramic tube increases durability and prevents thread fraying.
• C&F Standard Bobbin Holder: Teflon-coated arms reduce friction, allowing for smooth thread flow—an asset for both fly tying and sewing applications.
• Janome Color-Coded System: Bobbin holders with red, yellow, and blue dots offer built-in tension presets. The yellow dot suits thin (60-weight) threads, while the red dot is for standard threads.

Material & Compatibility:

Efficiency Factors:

• Thread Capacity:
  • Style L: ~110 yards (great for frequent thread changes)
  • Style M: ~210 yards (ideal for large projects)
• Pre-Wound Bobbins: Hold 20–30% more thread than self-wound, especially with 60-weight thread.
• Tension Optimization: Janome’s color-coded holders help match tension to thread weight, reducing stitch inconsistencies.

Trends & Innovations:

• Micro-adjustable tension systems (like SMHAEN Pro) are gaining popularity.
• Factory-wound bobbins save time and increase thread capacity.

Selection Criteria:

• Always verify compatibility with your machine’s bobbin case type and thread specifications.
• Match bobbin holder tension to your thread weight for best results.
• Choose metal cases for older machines, plastic for modern ones.

3.2 Product Comparison Chart

Here’s a quick side-by-side look at leading commercial bobbin holders:

Note: SMHAEN and C&F holders are designed for fly tying, but their tension-control principles inspire best practices for sewing bobbin holder selection.

By understanding the strengths and features of both DIY and commercial bobbin holders, you can choose the perfect solution for your sewing or embroidery needs—whether you’re organizing a vintage Singer collection or optimizing a modern quilting studio.

4. Installation, Usage, and Tension Mastery

Getting bobbin holders installed and tensioned correctly is the secret sauce for smooth, frustration-free sewing and embroidery. Whether you’re working with a classic Singer, a modern Brother, or exploring advanced garment embroidery, these steps and tips will help you avoid jams, nail perfect tension, and maximize efficiency.

4.1 Step-by-Step Installation Guide

Let’s demystify bobbin holder installation—no matter your machine type.

Front-Load Bobbin Holders (e.g., Singer, Bernina, select Brother models):

1. Choose the Right Bobbin: Always use the correct bobbin type—Class 15 for most front-loaders. Avoid Class 15J variants, as they’re not compatible with traditional Singer front-loading cases.
2. Wind and Prepare the Bobbin: Wind your thread counterclockwise, leaving about 4 inches (10 cm) of tail. Insert the bobbin into the case so the thread pulls off clockwise.
3. Thread the Case: Guide the thread through the slit and under the tension spring. The thread should exit to the right of the metal extension.
4. Set the Needle Position: Turn the handwheel counterclockwise to raise the needle to its highest point.
5. Access the Bobbin Compartment: Remove the extension table and open the hinged cover.
6. Insert the Bobbin Case: Hold the case by its latch, align the metal extension at the 12 o’clock position (pointing straight up), and push it into the shuttle until it clicks.
7. Check Alignment: Slowly turn the handwheel. The needle should move freely without striking the bobbin case. If there’s any resistance or noise, remove and reseat the case.

Drop-In Bobbin Holders (e.g., modern Brother, Janome, Baby Lock):

1. Open the Needle Plate: Use your fingernail or a small screwdriver to pop off the needle plate.
2. Insert the Bobbin: Drop the bobbin in so it spins counterclockwise. Thread it through the guide and under the tension spring.
3. Align the Case: Look for alignment marks (white dot or triangle). Line up the bobbin case accordingly and press it down until it sits flush.
4. Replace the Plate: Snap the needle plate back into place.

Brand-Specific Quirks:

• Singer: Always use Class 15 bobbins and double-check the case clicks into place.
• Brother/Bernina: Use alignment marks and ensure the case “floats” slightly for proper thread clearance.

Pro Tip: Bernina Jeff recommends tension-testing by snapping the thread tail with the bobbin case removed. If the thread unwinds 1–2 inches with a flick of your wrist, you’re in the right ballpark.

4.2 Advanced Tension Adjustment Techniques

Perfect tension is the holy grail of sewing—too loose, and you’ll get messy “bird’s nests”; too tight, and threads snap or pucker.

How to Adjust Bobbin Tension:

1. Test First: Remove the bobbin case, hold the thread tail, and “snap” your wrist. Ideal tension lets 1–2 inches unwind.
2. Fine-Tune with the Screw: Use the small screw on the bobbin case:
   • Turn right (clockwise) to tighten.
   • Turn left (counterclockwise) to loosen.
   Make micro-adjustments—think of the screw as a clock face, turning in 15-minute increments to avoid overcorrection.
3. Adapt for Thread Weight:
   • Fine/thin threads: Slightly tighten to prevent backlash.
   • Heavy/thick threads: Loosen to allow smooth unwinding.
4. Test on Scrap Fabric: Always sew a few lines on scrap material after adjustments. Look for balanced stitches—no loops or knots on top or bottom.
5. Brand Insights:
   • Janome: Use color-coded bobbin cases (yellow for thin, red for standard).
   • Luminaire (Brother): The green screw case is preset for 60-weight embroidery thread—avoid adjusting unless absolutely necessary.

Pro Tip: If you’re ever in doubt, consult your machine’s manual or use a bobbin tension gauge for precise measurements (e.g., 10–15 grams for drop-in cases, 40–60 grams for Bernina metal cases).

4.3 Optimizing Garment Embroidery Efficiency

Let’s talk workflow magic: the right bobbin tension is only half the battle—stable fabric hooping is the other.

Enter MaggieFrame Magnetic Embroidery Hoops:

When paired with proper bobbin tension, magnetic hoops for Janome embroidery machines like MaggieFrame’s transform garment embroidery. Here’s how:

• Stable Fabric Placement: The powerful magnetic clamping system automatically adapts to any fabric thickness, holding material firmly and evenly. This complements precise bobbin tension, preventing puckering and misalignment.
• Time Savings: Compared to traditional screw-based hoops, MaggieFrame can reduce garment hooping time by up to 90%. That’s the difference between spending three minutes and just thirty seconds per hooping—imagine the productivity boost in a busy shop!
• Defect Reduction: Even, secure hooping means fewer embroidery errors, less fabric waste, and more consistent results.
• User-Friendly: No more wrestling with screws or struggling with thick fabrics. The ergonomic design and guiding lines make alignment quick and foolproof.

Why It Matters: For garment embroidery (shirts, jackets, towels—anything flat), this combo of tension mastery and magnetic hooping delivers professional-quality results with less effort, less downtime, and less frustration.

Note: MaggieFrame hoops are for garment embroidery only—not for caps or hats.

Ready to level up your embroidery efficiency? Pairing correct bobbin tension with MaggieFrame’s magnetic hoops is like upgrading from a flip phone to a smartphone—you’ll wonder how you ever managed without it.

5. Magnetic vs. Standard: Performance Breakdown

With so many bobbin holder options on the market, how do you choose the right one for your sewing or embroidery needs? Let’s dive into the technical details and see how magnetic and standard bobbin holders stack up.

5.1 Technical Comparison Table

Key Takeaways:

- Consistent Tension: Magnetic bobbins shine in high-speed, high-volume embroidery—no mid-project tension tweaks required.

- Reduced Thread Breaks: The magnetic core minimizes vibration and overspin, translating to fewer interruptions and less wasted thread.

- Compatibility: Magnetic bobbins work well with L-Style bobbin cases in many commercial Bernina embroidery machine models and select Brother.

- Standard Bobbin Limitations: Paper-sided bobbins can lose tension as they empty, requiring frequent manual adjustments and slowing down production.

Specialized Systems:

- Janome Color-Dot Cases: Red, yellow, and blue dot holders are tailored for different thread weights (yellow for thin 60-weight thread, red/blue for thicker threads or quilting).

- Industrial/Vintage Types: M-Style bobbins (metal, 1" diameter) are used in long-arm quilting and industrial machines; Touch & Sew bobbins are proprietary to select Singer models.

Bobbin Case Designs:

Performance Trends:

- Magnetic bobbins can reduce downtime by 30–40% and eliminate up to 90% of overspin-related thread breaks in production settings.

- Modern bobbins use Magna-glide cores or plastic/metal hybrids for added durability.

5.2 Material Innovations for Magnetic Holders

The evolution of magnetic bobbin holders is a story of material science meeting practical sewing needs.

Key Innovations:

- Neodymium Magnets: These rare-earth magnets deliver powerful, stable clamping—ensuring the magnetic core keeps tension consistent, even at high speeds.

- Static-Dissipative Coatings: Polyester coatings help prevent static buildup, which can otherwise attract lint and disrupt thread flow.

- Anodized Steel (for Cotton Threads): Some holders use anodized steel for extra durability and smoother thread passage, especially with heavier cotton threads.

- 3D-Printed Hybrids & Modular Designs: The latest trend? Customizable holders made from a mix of high-strength plastics and embedded magnets—allowing for easy upgrades or repairs.

Why Materials Matter: Better materials mean longer-lasting holders, fewer tension headaches, and more reliable results—especially in demanding, high-volume settings.

6. Maintenance and Troubleshooting Essentials

A little care goes a long way. Regular cleaning and smart troubleshooting can keep your bobbin holders (and your sanity) in top shape.

6.1 Cleaning Protocols & Debris Management

Routine Cleaning:

1. How Often? Clean the bobbin area every 2–3 bobbin changes, or whenever you swap out the bobbin case.

2. What to Use:

- Soft nylon brush

- Pipe cleaner

- Business card (for tension spring)

- Vacuum attachment (for deep cleaning)

3. Steps:

- Remove lint from the hook race, feed dogs, and tension springs.

- Slide a business card under the tension spring to dislodge hidden dust—never use metal tools, which can damage parts.

- For stubborn lint, a pipe cleaner with a drop of oil can help (if your manual allows oiling or you need to visit Janome repair near me).

Best Practices:

- Keep thread spools in airtight containers to block dust.

- Replace needles every 2–3 bobbins or if you notice skipped stitches.

- Store your machine in a clean, dry space and use a dust cover when not in use.

Hoop Burn Prevention: Even tension from magnetic hoops like MaggieFrame can help prevent hoop burn, but regular cleaning is your first line of defense.

6.2 Solving Common Errors: Jams and Breakage

When things go wrong, don’t panic—here’s a quick troubleshooting guide:

Magnet Interference: DIY magnetic holders are great for storage, but ensure they don’t magnetize your bobbin case—magnetization can disrupt bobbin spin, especially in patcher-type machines.

Annual Servicing: Schedule professional servicing once a year to tackle hidden lint, worn parts, and keep your machine humming along.

Bobbin Case Health:

- Check that the case is perfectly round—warping can cause jams.

- Replace if discolored from heat or if the tension spring is bent.

Pro Tip: If you drop a screw or part, avoid using strong magnets to retrieve it near your machine—this can inadvertently magnetize sensitive components.

By following these maintenance and troubleshooting steps, you’ll keep your sewing setup running smoothly—and your creativity flowing, stitch after perfect stitch.

7. Universal Compatibility Guide

7.1 Bobbin Styles by Brand: Singer, Brother, Bernina

Ever tried to swap bobbin holders between machines, only to discover they don’t fit? You’re not alone. Bobbin holders (also called bobbin cases) are far from universal—each sewing machine brand, and often each model, has its own requirements. Let’s demystify the compatibility maze for Singer, Brother, and Bernina, so you can match your bobbin holder with confidence and avoid those frustrating “why won’t it fit?” moments.

European brands like Bernina, Pfaff, and Elna often use proprietary bobbin holders, so always check your manual before purchasing.

Material Matching: Plastic vs. Metal

Mixing materials—like using a plastic bobbin in a metal case—can cause wear and tension headaches. Stick to the manufacturer’s original material recommendation for best results. For example, Singer’s Class 15 bobbin holders are available in both metal and plastic, but using the wrong combination can lead to inconsistent tension.

Measurement & Identification

If you’re unsure which style you need, measure your bobbin’s diameter and width, then compare to a compatibility chart. For instance, L-style bobbins measure about 13/16" across and 11/32" wide, while Class 15 bobbins are slightly smaller and flatter.

Pro Tips:

- Always consult your manual or local Janome dealership near me or the manufacturer’s website for the definitive answer.

- Use retailer filters (like WAWAK) to search by brand and model.

- When in doubt, measure your bobbin and compare to a style chart.

Common Pitfalls & Exceptions

- Even within a single brand, bobbin holder styles can vary widely by model. Don’t assume all Singer or Brother machines use the same case!

- Some “universal” front-loading cases exist, but they’re typically limited to specific models (e.g., certain Toyota, Viking, or White machines).

- European brands often require proprietary parts—don’t try to force a fit.

Bottom Line: Matching your bobbin holder to your machine is like finding the right key for a lock. Take the time to check your manual, measure carefully, and choose the right material. Your stitches—and your sanity—will thank you.

8. DIY vs. Commercial: Cost-Benefit Analysis

8.1 Long-Term Value Assessment

Should you DIY your bobbin holder or buy a commercial solution? Let’s break down the cost, convenience, and performance, so you can make a choice that fits your sewing style—and your budget.

Commercial Bobbin Holders

Commercial options like Bobbin Clamps, Silicone Rings, and Bobbin Boats are designed for convenience and durability. Here’s how they stack up:

• Bobbin Clamps: Secure thread, great for long-term storage.
• Silicone Rings: Lightweight and colorful, but can slip off.
• Bobbin Boats: Compact and travel-friendly, but only hold about 10 bobbins per row.

For high-volume sewists, Bobbin Towers and Grabbit Bobbin Savers keep threads tidy and reduce maintenance time. Magnetic holders and Bobbin Toppers add organization but require careful alignment.

DIY Bobbin Holders

DIY solutions can save money and offer customization, but come with trade-offs:

For example, a homemade vinyl tubing holder is cheap and portable, but may not withstand years of use like a commercial Bobbin Clamp.

Cost-Benefit Comparison

Recommendations

• Choose Commercial if you want reliability, durability, and minimal fuss. Bobbin Clamps or Bobbin Boats are excellent for secure, portable storage.
• Go DIY if you enjoy crafting, need custom sizes, or want to save on upfront costs—but be prepared for more hands-on work and possible repairs down the road.

Bottom Line: For most home sewists, commercial bobbin holders offer the best mix of convenience and value. DIY options can be fun and cost-effective for hobbyists, but may not stand up to heavy use. Whichever route you choose, keeping your bobbins organized will save you time, reduce thread waste, and keep your sewing space blissfully tangle-free.

9. Conclusion: Streamlining Your Workflow

Mastering bobbin holders is the secret sauce for smooth, stress-free sewing and embroidery. From choosing the right style for your machine, to dialing in perfect tension and keeping your bobbins organized, every detail matters. Remember: proper installation prevents jams, smart tension adjustment ensures flawless stitches, and magnetic holders can supercharge your speed. For garment embroidery, pairing these best practices with MaggieFrame magnetic hoops delivers end-to-end efficiency—so you can spend less time troubleshooting and more time creating. Ready to elevate your workflow? Make every stitch count!

10. FAQ: Bobbin Holder Essentials

10.1 Q: Can I use aluminum bobbins in magnetic holders?

A: No, it’s not recommended to use aluminum bobbins in magnetic holders. According to forum discussions and user experience, aluminum bobbins are not attracted to magnets and may not stay securely in place. This can lead to inconsistent bobbin spin or even cause issues with thread delivery, especially in magnetic storage systems or holders designed for steel bobbins. Always check your bobbin material and follow your machine or holder manufacturer’s guidelines for best results.

10.2 Q: How often should I clean my bobbin case?

A: Clean your bobbin case every 2–3 bobbin changes, or whenever you notice a buildup of lint or debris. Regular cleaning helps prevent thread jams, tension problems, and skipped stitches. Use a soft brush or a business card to gently remove lint from the tension spring and surrounding areas. Avoid using metal tools, which can damage delicate parts. Keeping your bobbin area clean is one of the simplest ways to ensure smooth, trouble-free sewing.

10.3 Q: Why does my thread keep breaking?

A: Thread breakage is often caused by tension issues or a mismatch between your thread and any tubing or holder you’re using. If your tension is too tight, the thread can snap; if it’s too loose, it may tangle or nest. Double-check that your bobbin is wound evenly, the case is threaded correctly, and the tension screw is set appropriately for your thread weight. If you’re using a DIY holder (like vinyl tubing or elastic), make sure it isn’t pinching or catching the thread. Testing on scrap fabric after each adjustment can help you pinpoint and resolve the issue.

10.4 Q: What’s the best way to insert a bobbin case?

A: Always align your bobbin case according to your machine’s instructions—typically, there are alignment marks (like a white dot and triangle) to guide you. For front-load machines, hold the case by the latch and insert it until it clicks. For drop-in systems, ensure the bobbin spins in the correct direction (usually counterclockwise) and that the thread follows the proper path under the tension spring. If the needle hits the case or you feel resistance, remove and reseat the case.

10.5 Q: How do I know if my bobbin tension is set correctly?

A: A simple test is to remove the bobbin case and hold the thread tail. With a quick “snap” of your wrist, the thread should unwind about 1–2 inches. If it doesn’t move, the tension is too tight; if it drops freely, it’s too loose. For more precision, use a bobbin tension gauge and follow your machine’s recommended gram pull (e.g., 10–15 grams for drop-in cases, 40–60 grams for Bernina metal cases). Always make micro-adjustments and test on scrap fabric.

10.6 Q: My bobbin jams or skips stitches—what should I check?

A: Start by cleaning out any lint or debris from the bobbin case and surrounding area. Check that you’re using the correct bobbin type and that it’s inserted properly. Inspect the needle for wear or bending, and replace it if needed. If you use a magnetic holder, make sure your bobbin case hasn’t become magnetized, as this can disrupt smooth spinning—especially in patcher-type machines. Annual professional servicing can also help catch hidden issues before they cause major problems.

Still have questions? Don’t hesitate to consult your machine’s manual or reach out to your local dealer or sewing community. Keeping your bobbin holder in top shape is the key to frustration-free stitching—happy sewing!
