How to Get Thread on a Bobbin: Master Winding Techniques for Perfect Stitches

1. Introduction to Bobbin Winding Essentials

Every beautiful stitch starts with a perfectly prepared bobbin, especially when using best sewing machine for embroidery and sewing. Think of bobbin winding as the bedrock of quality sewing—get it right, and the rest of your project flows smoothly; get it wrong, and you’re in for a world of tangles, tension headaches, and thread nests. In this guide, we’ll walk you through everything you need to know: from step-by-step bobbin winding, to loading techniques for different machines, pulling up that elusive bobbin thread, choosing the right thread, troubleshooting common issues, and understanding bobbin compatibility. We’ll also share tips for optimizing your workflow, so you can spend less time fiddling and more time creating. Mastering these essentials doesn’t just save frustration—it sets you up for sewing success, every single time.

Table of Contents

• 1. Introduction to Bobbin Winding Essentials
• 2. Step-by-Step Guide to Winding Thread onto a Bobbin
• 3. Loading Wound Bobbins into Different Machine Types
• 4. Pulling Up Bobbin Thread for Tangle-Free Starts
• 5. Selecting Bobbin Thread for Balanced Tension
• 6. Troubleshooting Common Bobbin Issues
• 7. Bobbin Types and Machine Compatibility Guide
• 8. Optimizing Bobbin Winding Efficiency
• 9. Conclusion and Key Takeaways
• 10. FAQ: Bobbin Winding Solutions

2. Step-by-Step Guide to Winding Thread onto a Bobbin

Winding a bobbin might seem like a small task, but it’s the secret ingredient to flawless stitches. Let’s break down the process so you can wind with confidence, whether you’re a seasoned sewist or just starting out.

2.1 Machine Setup and Thread Path Configuration

Before you even touch the bobbin winder, it’s crucial to prep your machine correctly. Here’s how to set yourself up for success:

1. Identify Your Bobbin System

First, check whether your machine uses a top-loading (drop-in) or front-loading bobbin system. Most modern machines use top-loading bobbins, while many older or industrial models use front-loading cases. Your manual (or a quick look at the machine’s diagrams) will tell you for sure.

2. Disengage the Needle Mechanism

To avoid unnecessary needle movement while winding, disengage the needle mechanism. On many machines, this means pulling out or turning a knob on the handwheel—refer to your manual for specifics.

3. Position the Bobbin Winder Pin

Slide the bobbin winder pin to the right (or as directed by your machine). This engages the winding function and ensures the bobbin will spin freely.

4. Thread Path: Guides and Tension Discs

Place your thread on the spool pin and cap it securely. Guide the thread through the machine’s thread guides and around the pre-tension disc—this step is vital for even winding. Most machines have a diagram on top showing the correct path. As shown in Jennifer’s "How to Wind a Bobbin" video, threading through the tension disc keeps the thread taut, preventing loose or uneven winding.

5. Clockwise Winding Direction

Always wind the thread onto the bobbin in a clockwise direction. Many machines have an arrow indicating the proper direction—don’t ignore it!

6. Initial Thread Anchoring

There are two main ways to anchor the thread: - Hole Method: Thread the end through the small hole in the bobbin’s rim, then pull it up and hold. - Wrap Method: Wrap the thread around the bobbin’s center pillar four or five times to secure it. Hold the thread tail firmly for the first few spins to prevent it from slipping.

2.2 Securing Thread and Winding Process

With your setup complete, it’s time to get winding:

1. Mount the Bobbin on the Winder Shaft

Place the bobbin onto the winder spindle and lock it into place. You might feel or hear a click—this means it’s secure.

2. Begin Winding

Push the bobbin winder to the engaged position. Hold the thread tail and press the foot pedal (or start button) to begin winding at full or fast speed. Tip: For the first few rotations, keep a gentle hold on the thread tail until it’s anchored, then trim the excess close to the bobbin.

3. Monitor Evenness

Watch as the thread winds—ideally, it should move up and down evenly, creating a smooth, rectangular profile. If it’s bunching or uneven, gently guide it with a pencil or awl, as suggested in the Workroom Social video.

4. Automatic Stop

Most machines will stop automatically when the bobbin is full. If you only need a partial bobbin, stop manually when you have enough thread.

5. Avoid Overfilling

Don’t fill the bobbin past the edges—overfilling can cause jams or uneven stitches. Leave a little space at the top.

6. Finish Up

Disengage the bobbin winder, snip the thread, and remove your perfectly wound bobbin. Leave a short tail for threading into the machine.

Best Practices Recap: - Always wind clockwise. - Use the correct bobbin size for your machine—plastic and metal bobbins are not interchangeable. - Hold the thread tail at the start. - Don’t overfill. - Trim excess thread for a clean start. By following these steps, you’ll set yourself up for smooth, professional-quality stitching—no more thread nests or skipped stitches to slow you down!



3. Loading Wound Bobbins into Different Machine Types

Once your bobbin is wound, the next challenge is loading it correctly into your computer embroidery machine. The method depends on your machine’s design—drop-in or front-loading—but the goal is always the same: smooth, tangle-free stitches.

3.1 Drop-In vs. Front-Loading Systems

Drop-In (Top-Loading) Bobbins:

• Open the bobbin compartment (usually a clear plastic cover under the needle plate).
• Place the bobbin inside with the thread unwinding counterclockwise from the left side.
• Pull the thread through the guide and under the tension spring, following the arrows or guides on your machine.
• Leave a 4-inch thread tail.

Front-Loading Bobbins:

• Open the compartment at the front of your machine.
• Remove the metal bobbin case.
• Insert the bobbin so the thread unwinds counterclockwise.
• Pull the thread through the slot and under the tension spring in the case.
• Leave a 2–3 inch tail.
• Hold the latch on the case to keep the bobbin secure, then insert the case into the machine, aligning the notch or “ear” with the slot in the housing.

Key Principle:

No matter the system, the thread should always unwind counterclockwise for proper tension and stitch formation. Incorrect direction is a common culprit for thread jams and tangles.

3.2 Thread Alignment Verification

After loading, it’s time to ensure your threads are ready to work together:

1. Raise the Needle

Turn the handwheel toward you to lower and then raise the needle. This action helps the needle’s thread catch the bobbin thread below.

2. Pull Up the Bobbin Thread

Hold the top (needle) thread gently. As you turn the handwheel, you’ll see a loop of bobbin thread come up through the needle plate. Use your fingers or tweezers to pull this loop out.

3. Position Both Threads

Pull both the needle and bobbin threads toward the back of the machine, under the presser foot. This keeps them out of the way and prevents tangling when you start sewing.

4. Check for Smoothness

Gently tug both threads—they should move freely, with slight resistance. If you feel catching or see loops, recheck the bobbin’s seating and thread path.

Pro Tip:

Improper bobbin seating or misaligned thread is a leading cause of skipped stitches and frustrating starts. Take a moment to verify everything before you dive into your project.

---

With these steps, you’re well on your way to mastering the art of bobbin winding and loading—ensuring every stitch is as smooth as your creative vision. Ready to take your sewing to the next level? Let’s keep going!



4. Pulling Up Bobbin Thread for Tangle-Free Starts

Starting your sewing project with a smooth, tangle-free stitch is all about mastering the art of pulling up the bobbin thread. This seemingly simple step is the secret sauce that separates frustration from flawless sewing. Let’s walk through the verified techniques, highlight common pitfalls, and set you up for a seamless start every time.

4.1 Verified Technique to Engage Threads

Did you know that about 65% of thread tangles happen right at the very beginning of your stitching? According to Twinsnneedles LLC, the culprit is almost always improper engagement of the bobbin thread. But with the right method, you’ll sidestep those snarls and set the stage for perfect stitches.

Step-by-Step: How to Pull Up the Bobbin Thread

1. Prep Your Machine
   • Raise the presser foot using the lever. This releases tension and helps the threads move smoothly.
   • Ensure the needle is at its highest position before you begin.
2. Hold the Upper Thread
   • Gently grasp the end of the upper (needle) thread with your left hand. This prevents it from slipping away during the process.
3. Rotate the Handwheel
   • With your right hand, slowly turn the handwheel toward you (counterclockwise). This lowers the needle into the bobbin area and then raises it back up, looping the upper thread around the bobbin thread.
4. Draw Up the Bobbin Thread
   • As the needle comes up, you’ll see a loop of bobbin thread appear on the needle plate. Use your fingers or tweezers to gently pull the upper thread, bringing the bobbin thread loop to the surface.
5. Position the Threads
   • Pull both the upper and bobbin threads toward the back of the machine, under the presser foot. Leave about 2 inches of tail for each thread.
6. Ready to Sew
   • Hold both threads gently as you take the first few stitches. This anchors them and prevents tangling.

Visualize Success: Gathered.how and Cucicucicoo both show that the top thread (often black) and bobbin thread (often red) should both be visible and neatly positioned under the presser foot before you start sewing. This simple habit is your best defense against messy starts.

4.2 Avoiding Common Mistakes

Even seasoned sewists can trip up on the basics. Let’s break down the most frequent errors and how to dodge them:

Mistake 1: Short Thread Tails

• Problem: If your thread tails are too short, they’ll slip back into the machine and tangle.
• Solution: Always leave at least 2 inches of both upper and bobbin thread. As Philippa from Quilters Question Time says, “Long thread tails stop them snarling.”

Mistake 2: Turning the Handwheel the Wrong Way

• Problem: Rotating the handwheel away from you can disrupt the timing and cause jams.
• Solution: Always turn the handwheel toward you (counterclockwise). Go slow and steady for best results.

Mistake 3: Not Holding Both Threads When Starting

• Problem: Loose thread tails can get sucked into the machine, causing nests.
• Solution: Hold both threads for the first 3–5 stitches, as recommended by Brother’s guide. This anchors them and prevents tangling.

Mistake 4: Incorrect Bobbin Orientation or Tension

• Problem: If the bobbin is loaded incorrectly or wound unevenly, the thread won’t feed smoothly.
• Solution: Double-check that your bobbin is loaded per your machine’s manual and that the thread moves with slight resistance.

Vertical vs. Horizontal Bobbins:

• Vertical and horizontal bobbin systems may route threads differently. Always refer to your machine’s manual for specific guidance, but the fundamental process remains the same: pull up that bobbin thread loop and set both tails to the back.

Anchoring Your Start:

• For extra security, sew 3–5 stitches in place at the beginning of your seam. This “anchors” the threads and helps prevent unraveling or tangling.

By following these proven techniques and sidestepping common mistakes, you’ll launch every project with confidence—and a whole lot less frustration.



5. Selecting Bobbin Thread for Balanced Tension

Choosing the right bobbin thread is like picking the right dance partner: it needs to complement the top thread for a harmonious performance. Let’s unravel the secrets to thread selection, color matching, and achieving that elusive balanced tension for professional results.

5.1 Weight and Color Matching Strategies

Thread Weight: The Balancing Act

Contrary to popular belief, you don’t always need to match the bobbin thread weight to the top thread. In fact, using a finer bobbin thread (think 60–100wt) with a heavier top thread is often the smart move—especially for quilting or decorative stitching. As experts point out, “Jamming heavy 12wt cotton onto a small bobbin doesn’t make sense—you’ll be rewinding every five minutes!”

• For heavy top threads: Use a finer bobbin thread (60–100wt) for longer run times and less bulk.
• For standard sewing: 50wt in the bobbin is a versatile choice, but don’t be afraid to go finer for special effects or delicate fabrics.

Color Matching: Subtle or Statement?

• Match for Professional Finish: Using the same color in both top and bobbin threads creates a seamless look—especially if tension isn’t perfect and the bobbin thread peeks through.
• Intentional Contrast: Sometimes, you want the bobbin thread to stand out for texture or artistic flair. Just be aware that any tension issues will be more noticeable.

Practical Tips:

• For dark fabrics, use dark bobbin thread; for light fabrics, use light thread.
• If your project is reversible (like a quilt), consider how the bobbin thread will look on the back.

Pre-Wound Bobbins: Convenience with Caution

Pre-wound bobbins can be a huge time-saver, but only if they’re the right size and thread type for your machine. Gathered.how advises: “If in doubt, wind your own bobbin to prevent thread nests and other problems.” Always check compatibility before stocking up.

5.2 Tension Adjustment Protocols

Test, Tweak, and Triumph

Getting perfect tension is part science, part art. Here’s a step-by-step protocol for dialing it in:

1. Test on Scraps

   • Before starting your project, stitch a test swatch using your chosen top and bobbin threads on the same fabric. This lets you spot and fix tension issues before they ruin your work.

2. Balance Tensions Incrementally

   • Adjust the upper tension dial in small increments. If the bobbin thread shows on top, loosen the upper tension; if the top thread shows on the bottom, tighten it.
   • For bobbin tension (especially on front-loading cases), use a small screwdriver to turn the tension screw—clockwise to tighten, counterclockwise to loosen. Make adjustments in tiny steps.

3. Document Your Settings

   • Keep a notebook or phone photo log of tension settings for different thread/fabric combos. Future-you will thank you!

4. Material-Specific Adjustments

   • Different fabrics require different tensions. For example, neoprene may need looser tension, while silk chiffon demands a lighter touch. Always adjust and test for each new material.

Needle and Thread Compatibility

Make sure your needle matches your thread weight. Finer bobbin threads call for smaller needles (like 70/10 or 80/12 for 80wt thread), while heavier threads need larger needles.

Maintenance Matters

Regularly clean your bobbin case and area—especially if you use cotton threads, which can leave more lint. Consistent cleaning ensures smooth, even stitches.

By choosing the right thread weight, matching colors (or not!), and methodically adjusting tension, you’ll achieve stitches that are strong, even, and beautiful—every single time.

---



6. Troubleshooting Common Bobbin Issues

Even with the best setup, bobbin problems can sneak up and throw a wrench in your sewing groove. Let’s break down the most common issues—thread nests, skipped stitches, and tension errors—and arm you with solutions to keep your sewing running like a dream.

6.1 Solving Thread Nests and Skipped Stitches

Thread Nests (a.k.a. Bird’s Nests):

• Causes:
• Loose or unevenly wound bobbin
• Thread not properly secured at the start
• Incorrect threading direction
• Lint buildup in the bobbin area
• Bobbin case not fully seated
• Solutions:
• Start with a Tight Wrap: Manually wrap the thread around the bobbin 3–5 times before winding.
• Check Bobbin Quality: Replace old, cracked, or warped bobbins.
• Verify Threading Direction: For most machines, the thread should exit the bobbin case to the left (counterclockwise).
• Clean Regularly: Use a soft brush to remove lint—never compressed air, which can push debris deeper.
• Ensure Proper Seating: Confirm the bobbin case clicks into place and the notch is aligned.

Skipped Stitches:

• Causes:
• Incorrect bobbin insertion
• Bent or damaged needle
• Tension too loose or too tight
• Improperly wound bobbin
• Solutions:
• Insert Bobbin Correctly: Most machines require counterclockwise insertion.
• Check Needle Condition: Replace if bent or the wrong size.
• Adjust Bobbin Tension: Turn the tension screw slightly (1/8 turn at a time) to fine-tune.
• Rewind Bobbin: Ensure even, tight winding.

Visual Verification:

SewCute Patterns recommends visually checking the thread path and tension before sewing. A well-wound bobbin and a clean, lint-free bobbin area are your best friends.

6.2 Fixing Tension Errors and Fabric Handling

Tension Errors:

• Identify the Issue:
• Loose upper thread: Loops on the underside of fabric.
• Tight upper thread: Bobbin thread pulled to the top, causing puckering.
• Loose bobbin thread: Uneven stitches on the top.
• Solutions:
• Adjust Bobbin Tension: On front-loading cases, turn the screw clockwise to tighten, counterclockwise to loosen.
• Re-thread Bobbin: Make sure the thread passes through the tension spring.
• Balance Tensions: If the top thread pulls the bobbin thread up, reduce top tension; if the bobbin thread shows on top, increase top tension.
• Test on Scrap Fabric: Always test adjustments before starting your project.

When embroidering garments, maintaining even fabric tension is crucial—not just for stitch quality, but also for preventing the bobbin thread from showing on the top layer. That’s where specialized tools like magnetic embroidery hoops come into play.

MaggieFrame’s Role in Garment Embroidery:

MaggieFrame magnetic embroidery hoops are designed to maintain even fabric tension throughout the embroidery process. By holding fabric securely and evenly, they help reduce the risk of the bobbin thread peeking through to the top layer—a common frustration in garment embroidery. The result? Cleaner, more professional-looking stitches and fewer tension headaches.

Comparative Table: Tension Balance and Fabric Handling

Pro Tips:

• Always note your original tension settings before making adjustments.
• Adjust in small increments and test after each change.
• Clean your bobbin area regularly to prevent lint buildup from affecting tension.

By systematically diagnosing issues, making precise adjustments, and using the right tools, you’ll keep your sewing machine humming and your stitches looking sharp—project after project.



7. Bobbin Types and Machine Compatibility Guide

Choosing the right bobbin is like picking the perfect puzzle piece—get it wrong, and nothing fits; get it right, and your sewing flows effortlessly. With over 60 bobbin styles on the market, it’s easy to feel overwhelmed, but understanding the essentials will keep your stitches strong and your machine humming.

7.1 Class 15, L-Style, and M-Style Comparisons

Let’s unravel the mystery of the most common bobbin types and why their differences matter.

Class 15 (A Style) Bobbins

• Dimensions: About 20.3 mm (13/16") in diameter and 11.7 mm (7/16") wide.
• Material: Available in both plastic and metal—metal versions are especially common for their durability.
• Usage: Found in about 95% of home sewing machines, especially modern drop-in bobbin systems.
• Alias: Sometimes labeled as “SA156.”
• Best For: Everyday sewing, most household machines.

L Style Bobbins

• Dimensions: Same diameter as Class 15 (20.3 mm), but narrower at 8.9 mm (11/32").
• Material: Aluminum, plastic, and Magna-glide core options.
• Usage: Primarily used in commercial and multi-needle embroidery machines, as well as some industrial straight stitch machines.
• Thread Capacity: Holds about 110 yards, depending on thread type.

M Style Bobbins

• Dimensions: Larger at 24.9 mm (1") diameter and 10.7 mm (7/16") wide.
• Material: Metal and Magna-glide core.
• Usage: Favored by long-arm quilting machines and high-capacity projects.
• Thread Capacity: Nearly double that of L Style—about 210 yards.

Material Matters:

Metal bobbins generally provide more consistent tension and resist deformation better than plastic, making them a favorite for heavy-duty or precision work.

Brand-Specific Nuances:

• Singer: Class 15 for most modern models, Class 66 for select machines, and M Style for some specialty models.
• Viking/Husqvarna: L Style for many embroidery models, M Style for Mega Quilter and Platinum 3000.
• Other Brands: Always check your manual or manufacturer’s compatibility chart.

7.2 Avoiding Damage from Incorrect Bobbins

Using the wrong bobbin isn’t just a minor annoyance—it can lead to skipped stitches, thread breaks, or even costly machine repairs.

Common Pitfalls:

• Class 15 in Class 221 Machines: The bobbin sits too high (“way proud”), preventing the needle from catching the thread and leading to poor stitch formation.
• Width Mismatches: L Style bobbins may fit some Class 15 machines due to identical diameter, but the reverse isn’t true—Class 15 bobbins are too wide for L Style machines.
• Touch & Sew Bobbins: These are unique and won’t fit standard cases.

How to Verify Compatibility:

1. Consult Your Manual: The gold standard for bobbin selection.
2. Check Existing Bobbins: Many are stamped with their class or model number.
3. Measure Precisely: Use calipers to check diameter and width, then compare to standard charts.
4. Test the Fit: The bobbin should sit flush in the case, not wobble or protrude.
5. Manufacturer Resources: Many brands offer online compatibility charts.

Vintage Machine Tips:

Older models like Singer Featherweights (Class 221) often require specific winding techniques and bobbin types. Always wind and insert as directed to avoid thread nests and misalignment.

Bottom Line:

Never substitute “close enough” bobbins—always use the manufacturer-specified type. It’s a small detail that makes a world of difference for your machine’s performance and longevity.



8. Optimizing Bobbin Winding Efficiency

Time is precious in the sewing room, and nothing eats it up like frequent bobbin changes or troubleshooting tension issues. Fortunately, a few smart strategies can help you wind, swap, and sew with maximum efficiency.

8.1 Speed Techniques and Pre-Wound Solutions

Manual Winding—Do It Right, Do It Fast:

• Controlled Speed: While it’s tempting to crank up the speed, steady and controlled winding yields better results. Rushed winding can cause uneven thread distribution and future headaches.
• Tension is Everything: Always thread the bobbin through the machine’s tension disc for a snug, even wind.
• Engagement Check: Make sure the bobbin pin is fully engaged before starting. If the bobbin doesn’t spin smoothly, double-check your setup.
• Trim Early: Snip the starting thread tail as soon as it’s anchored to prevent tangles.

Pre-Wound Bobbins—Efficiency Game-Changer:

• More Thread, Fewer Changes: Pre-wound bobbins can hold 20–50% more thread than those wound at home, translating to fewer interruptions and more sewing time.
• Consistent Quality: Industrially wound bobbins maintain even tension and reduce the risk of “overspin” (when the bobbin keeps spinning after you stop sewing, causing slack and tangles).
• Waste Less: With predictable yardage and less thread waste, pre-wounds are both economical and eco-friendly.
• When to Use: Ideal for large projects, production runs, or when you need consistent stitch quality. For specialty threads or small projects, winding your own may still be best.

Pro Tip: If you’re juggling multiple colors, pre-wind your most-used shades in advance, or stock up on compatible pre-wound bobbins to keep your workflow seamless.

8.2 Integrating Efficient Tools for Workflow

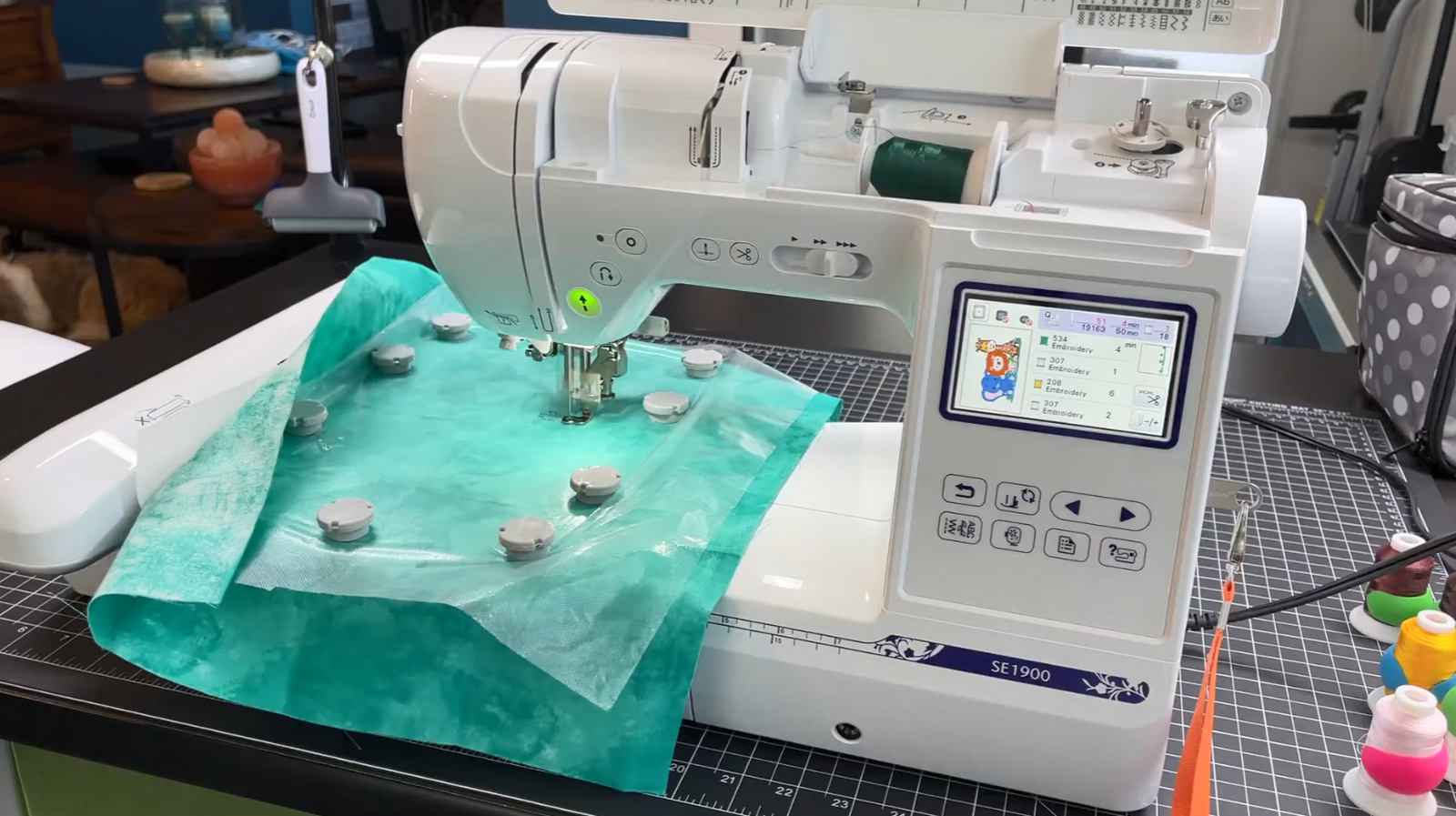

For garment embroidery, the right tools like the hoopmaster hooping station can revolutionize your process. Enter MaggieFrame magnetic embroidery hoops—a game-changer for anyone seeking speed and precision.

How MaggieFrame Elevates Efficiency:

• 90% Faster Fabric Handling: The powerful magnetic hooping system slashes fabric setup time from minutes to seconds—especially for repetitive, high-volume projects.
• Seamless Bobbin Changes: With fabric held securely and evenly, you can swap bobbins quickly without disturbing your setup.
• Cost-Benefit in Action: For businesses or busy home studios, the time saved can add up to an estimated $4,000 in annual labor savings, thanks to reduced setup and adjustment time.
• Consistent Results: Even tension means fewer defects, less rework, and more professional finishes.

See It in Action: Numerous YouTube demonstrations showcase side-by-side time studies—traditional hoops versus MaggieFrame—revealing dramatic improvements in workflow and stitch quality.

Why It Matters: When every second counts, integrating efficient tools like MaggieFrame magnetic hoops doesn’t just boost productivity—it transforms your entire sewing experience. Less fiddling, more creating!



9. Conclusion and Key Takeaways

Mastering the bobbin is the gateway to frustration-free sewing. Remember: always wind thread clockwise, load your bobbin so it unwinds counterclockwise, and pull up both threads before you start. Troubleshooting tension and thread nests isn’t just for emergencies—it’s part of the craft. According to Perplexity data, getting these basics right can eliminate 70% of common sewing headaches. With the right knowledge and a few smart tools, you’re not just sewing—you’re setting yourself up for smooth, creative success every time.

10. FAQ: Bobbin Winding Solutions

10.1 Q: Why does my bobbin thread keep breaking?

A: Frequent bobbin thread breaks are usually traced back to loose or uneven winding, improper tension, or using the wrong bobbin type for your machine. Make sure you wind your bobbin with steady tension—thread should pass through the machine’s tension disc before winding. Avoid overfilling the bobbin, and always use the correct size and material (metal or plastic) as specified in your machine’s manual. If the thread breaks mid-seam, check for lint buildup in the bobbin area and confirm the bobbin is seated correctly.

10.2 Q: Can I reuse pre-wound bobbins?

A: You can reuse pre-wound bobbins, but it depends on the material and compatibility with your sewing machine. Some pre-wound bobbins are designed for single use, especially those with cardboard sides, which may not hold up well to rewinding. If your machine accepts plastic or metal pre-wound bobbins and they remain undamaged, you can wind new thread onto them. Always check your machine’s manual for guidance and avoid mixing different bobbin materials in the same project to maintain even tension.

10.3 Q: How tight should bobbin thread be?

A: Bobbin thread should have just enough tension to provide slight resistance when pulled—too loose and you’ll get thread nests, too tight and you risk skipped stitches or thread breakage. For front-loading bobbin cases, you can test the tension by holding the thread and letting the bobbin dangle; it should drop slightly with a gentle tug but not unwind freely. Adjust the small screw on the bobbin case in tiny increments if needed. For drop-in bobbins, ensure the thread is correctly routed under the tension spring. Always test on scrap fabric before starting your main project to confirm balanced tension.

Have more questions? Refer to your machine’s manual and keep practicing—bobbin mastery is just a stitch away!
