How to Thread a Bobbin: Master Winding, Inserting, and Troubleshooting

1. Introduction: Mastering Bobbin Threading for Flawless Sewing

Great stitches start below the needle plate. The bobbin delivers the lower thread that locks with your top thread to form the classic lockstitch. When you wind and insert the bobbin correctly, your machine runs smoother, seams stay strong, and troubleshooting gets rare. In this guide, you’ll learn step-by-step winding, how bobbins power stitch formation, the difference between hook systems, best practices for even winding, and what to do when things go wrong—plus simple maintenance to keep tension consistent.

Table of Contents

• 1. Introduction: Mastering Bobbin Threading for Flawless Sewing
• 2. The Bobbin's Crucial Role in Stitch Formation
• 3. Step-by-Step Bobbin Winding Techniques
• 4. Inserting Bobbins: Drop-In vs. Front-Loading Systems
• 5. Pulling Up the Bobbin Thread Correctly
• 6. Selecting Bobbins and Threads for Optimal Results
• 10. FAQ: Bobbin Threading Essentials

2. The Bobbin's Crucial Role in Stitch Formation

2.1 Mechanics of Stitch Creation: Upper and Lower Thread Interplay

Every stitch is a precise dance between two threads:

• The needle carries the upper thread down through the fabric.
• A hook mechanism below (the “bobbin area”) catches the upper thread and sweeps it around the bobbin case, forming a loop.
• The bobbin thread is pulled into that loop beneath the fabric layers, creating the lockstitch as the needle rises.

Hook systems vary, but the result is the same lockstitch:

• Rotary hook: the hook rotates in full circles around the bobbin case with each stitch.
• Oscillating hook: the hook swings partway, reverses, and repeats in a pendulum motion.

In both designs, stitch quality relies on smooth thread capture, balanced tension between upper and bobbin threads, and clean, properly wound/installed bobbins.

2.2 Why Proper Threading Prevents Common Sewing Disasters

Incorrect bobbin setup triggers a cascade of issues:

• Tension imbalance: uneven stitches, visible loops on one side, and weak seams.
• Thread breaks and nests: poor winding, wrong bobbin direction, or mis-threaded bobbin case can cause jamming and birds’ nests.
• Inconsistent feeding: debris under the bobbin case spring disrupts tension.

Key preventions:

• Wind evenly and install the bobbin in the direction your machine requires (drop-in and front-loading systems differ).
• Use the bobbin case’s intended threading path so its spring can regulate tension.
• Keep the bobbin area clean; a thin pin can lift lint from under the case spring.
• Use the correct bobbin type/material for your machine—metal and plastic aren’t interchangeable on many models.

3. Step-by-Step Bobbin Winding Techniques

3.1 Machine Preparation and Thread Path Setup

Follow these fundamentals for a smooth, even wind:

1. Prep the machine: power off. Raise the needle to the highest position with the handwheel turned toward you. Raise the presser foot.
2. Place the thread spool on the pin so it unwinds smoothly.
3. Thread the bobbin-winding path: guide the thread through the bobbin winder’s dedicated tension disc/guide (separate from your upper-thread tension).
4. Thread the bobbin: pass thread through the small hole on the bobbin flange (or wrap a few turns around the core). Leave a short tail.
5. Seat and engage: place the bobbin on the winder spindle and engage the bobbin winder. On many machines, this disengages the needle; if your model has a separate needle-disengage, use it.
6. Start and secure: hold the tail, start the motor (foot pedal or start/stop). After a few rotations, stop and trim the tail close to the bobbin. Resume winding.

Tips from demonstrations:

• The thread should travel up and down across the bobbin surface in a steady rhythm. That’s a sign your winding tension is correct.
• If distribution skews to one side, gently guide with a blunt tool (awl or pencil) while winding.

3.2 Speed Control and Monitoring for Even Winding

• Speed for consistency: many machines produce the most even distribution at higher winding speeds. Use fast winding when appropriate for your thread and spool.
• Watch the pattern: look for uniform, crisscross layers moving evenly from flange to flange.
• Correct mid-wind issues:
  • If thread bunches or leaves gaps, re-check the tension disc path and bobbin seating.
  • If the tail wasn’t trimmed early, stop, cut it close, and continue.
• Capacity: modern machines often auto-stop when full. If yours doesn’t, stop before thread reaches the rim to prevent overfilling.
• Disengage and remove: return the winder to its resting position, cut the thread, and re-engage sewing mode.

3.3 Advanced Winding: Tuning Tension for Specialty Threads

Specialty threads need special handling during winding:

• Metallic and monofilament (transparent nylon):
  • Slow the winding speed to reduce stretching or snapping.
  • A spool net (if recommended by your manual) can tame slick or fast-unwinding spools.
  • Many manufacturers advise not filling monofilament to full capacity; stopping around half to two-thirds can improve performance.
• Stretch-prone threads:
  • Wind at a lower speed to minimize stretch and maintain consistent bobbin delivery.
• Always use the right bobbin for your machine:
  • Dimensions and materials matter; wrong bobbins can cause tension irregularities or mechanical issues.
• Keep tension reliable:
  • Ensure the bobbin-winding tension disc is fully engaged during winding.
  • Maintain a clean bobbin case and under-spring area so bobbin tension remains stable during sewing.

Master these winding habits and your stitches will show it: fewer tangles, steadier tension, and professional-looking results right out of the gate.

4. Inserting Bobbins: Drop-In vs. Front-Loading Systems

Two systems, two motions—both demand correct orientation and a clean, secure seat. Use the steps below to avoid tension glitches, nests, and clicking noises from a loose bobbin area.

4.1 Drop-In Bobbin Installation: Thread Direction Essentials

• Prep and open:
• Raise the needle and presser foot. Remove the clear cover on the needle plate.
• Ensure your bobbin is evenly wound with no stray tails.
• Orientation and path:
• Place the bobbin so the thread falls to the left and the bobbin turns counterclockwise when you pull the tail (as shown on most drop-in cover diagrams).
• Feed the thread into the front groove/slot around the six o’clock position, then pull left following the arrow so it seats in the tension groove. Many machines indicate this path on the cover.
• Secure and tidy:
• The thread should sit flat in the designated groove and lead toward the machine’s rear under the plate.
• Leave a short tail (about 10 cm/4 in) and confirm the bobbin sits flat without wobble. Replace the cover.
• Quick checks:
• Remove lint with a soft brush before each bobbin change to keep the bobbin holder stable and tension consistent.
• If the cover won’t close smoothly, re-seat the bobbin and make sure no excess thread is caught under or around it.

Tips pulled from top tutorials and demos: keep one finger lightly on the bobbin as you draw the thread into the groove, and follow the arrow decal precisely—this locks in the correct counterclockwise feed for most drop-ins.

4.2 Front-Loading with Bobbin Case: Precision Placement

• Access and remove:
• With needle and presser foot raised, open the front cover. Pull the latch on the bobbin case to remove it.
• Load the case (clockwise check):
• Place the wound bobbin into the case so the thread comes over the top to the right; a gentle tug on the tail should rotate the bobbin clockwise.
• Guide the thread through the top slit and slide it right until it clicks under the tension spring/finger. Give a small tug—there should be light, even resistance.
• Insert and align:
• Hold the case by its latch, align the case “ear”/metal extension at the top (12 o’clock) with the notch in the machine, and press in until you feel/hear a click. The case should not wobble.
• If insertion feels off, turn the handwheel toward you slightly to align the hook position, then try again.
• Final checks:
• Visually confirm the case is fully seated and centered. Clean any lint around the case and spring area to prevent tension hiccups.

These case-orientation, “click under the spring,” and “12 o’clock ear” cues come straight from reliable front-loader guides and videos—follow them and the case will sit perfectly every time.

5. Pulling Up the Bobbin Thread Correctly

Raising the bobbin thread prevents early tangles, protects stitch formation, and sets you up for smooth seams from the first stitch.

5.1 Handwheel Technique for Loop Creation

• Prepare the top thread:
• Thread the upper path completely and lay the top thread under the presser foot. Hold the top thread tail with your left hand using steady, moderate tension.
• Cycle the needle:
• Turn the handwheel toward you through one full cycle: down through the plate and back up to the highest position.
• Catch the loop:
• Gently pull the top thread—this draws up a small loop of bobbin thread under the presser foot.
• Use your fingers or slide a tool (like the tip of scissors) under the foot to sweep the loop out. Pull the bobbin thread completely to the surface.
• Position to start:
• Place both threads toward the back of the machine. Leave several inches of tail so the first stitches don’t pull threads back into the plate.

This “hold the top, full rotation, sweep the loop” workflow mirrors manufacturer instructions and beginner-friendly demos, and it works reliably on both system types.

5.2 System-Specific Variations and Troubleshooting

• Drop-in specifics:
• If the loop won’t appear, re-check that the bobbin feeds counterclockwise and sits in the designated groove. Confirm the cover is closed and the bobbin lies flat.
• Front-loading specifics:
• Verify the bobbin rotates clockwise when you pull the tail, the thread clicked under the case’s tension spring, and the case is fully clicked into place with the ear at 12 o’clock.
• If the loop still won’t come up:
• Re-thread the upper path completely and repeat one full handwheel rotation while maintaining gentle tension on the top thread.
• Inspect for lint under the bobbin case spring and remove it with a soft brush.
• If tension seems overly tight on the bobbin case, adjust the tension screw in very small increments (think “five-minute” clock turns), and test again. Restore to baseline if results worsen.
• Persistent failure to catch can indicate alignment issues—ensure the case is fully seated; if problems persist, a technician should assess the hook timing or worn springs.

Set this as a habit: raise the bobbin thread before your first stitch, every time. It’s a simple insurance policy against nests and skipped starts.

6. Selecting Bobbins and Threads for Optimal Results

The right bobbin and thread pairing stabilizes tension, reduces bulk, and delivers clean, durable seams and embroidery.

6.1 Thread Weight and Material Compatibility Guide

• Weight basics:
  • Thread weight is inverse: higher numbers are finer. Bobbin threads commonly range 60–90 wt, while standard embroidery tops are often 40 wt.
  • Medium 40–50 wt works for general sewing; use in the bobbin when you want similar visibility and strength on both sides or when sewing heavy materials.
  • Fine 60–100 wt shines in dense embroidery, micro quilting, monograms, and delicate fabrics—less bulk, cleaner detail. Balance with your top thread tension.
• Material choices:
  • Polyester: strong, flexible, and resilient to UV and mildew; great for synthetics, knits, and items washed/worn often.
  • Cotton: soft hand and natural look; pairs beautifully with cottons and linens.
  • Specialized: rayon (softness for delicate work) and monofilament (reduced friction in embroidery machines).
• Project pointers:
  • Embroidery: use finer bobbin threads for dense designs to reduce bulk. Match bobbin color to the fabric to minimize show-through on light fabrics. Pre-wound bobbins can improve consistency if they match your machine type and project thread.
  • Quilting: favor 60–80 wt in the bobbin to reduce loft and keep lines crisp.
  • Garments: medium (around 30–40 wt) for most construction; switch to finer bobbin threads on delicate textiles to avoid puckering.
• Practical tips from top guides:
  • Match bobbin and top thread weight when possible to simplify tension balancing.
  • Color-match top and bobbin if the reverse side will show.
  • Use bobbins designed for your machine—metal and plastic aren’t universally interchangeable.

Recommended pairings at a glance:

Always test your combination on a scrap of the actual project fabric before committing.

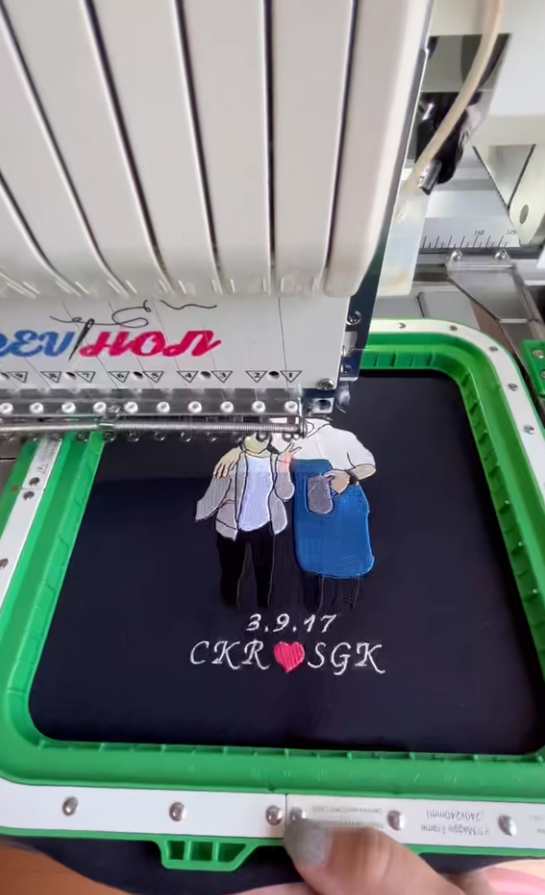

6.2 Enhancing Garment Embroidery with Stable Hooping Systems

Fabric movement is a hidden saboteur of bobbin tension. A stable hooping system keeps the fabric flat, which helps your lower thread feed evenly through the stitch cycle.

• Why magnetic hoops help:
  • Even, distributed holding reduces fabric shift that can cause tension swings, loops, and nests.
  • Faster setup means more time stitching and less chance of over-stretching fabric while hooping.

A practical option: MaggieFrame magnetic machine embroidery hoops

• Designed for garment embroidery, MaggieFrame’s high-strength magnets and textured contact surfaces help hold a wide range of fabrics—from delicate knits to multilayer denim—without the repeated screw adjustments of traditional hoops.
• Time and quality gains noted in user-provided data:
  • Hooping time can drop from about 3 minutes to roughly 30 seconds per garment, saving up to 90% of hooping time.
  • More stable fabric handling contributes to about a 15% reduction in embroidery defects.
  • Broad fit and workflow flexibility: over 17 sizes are available, with brackets to fit most commercial and industrial embroidery machines.

Notes:

• MaggieFrame is for garment embroidery hooping (not suitable for caps/hats).
• Stable hooping complements, but does not replace, correct bobbin setup—use appropriate bobbin thread weight, insert the bobbin in the correct direction, and keep the bobbin area clean.

If you’re fighting tension variations caused by fabric shifting, pairing proper bobbin selection with a stable magnetic hoop like MaggieFrame can smooth out the bottom thread’s delivery and lift stitch consistency across your run.

10. FAQ: Bobbin Threading Essentials

10.1 Q: Why do so many guides tell me to wind the bobbin clockwise?

A: Because most bobbin-winding systems are designed for clockwise wraps around the bobbin so the thread seats correctly in the pretension disk and winds evenly. Manufacturer instructions note that winding the wrong way can cause the thread to wrap around the winder shaft and tangle. Note this is separate from how the bobbin should rotate when installed: most drop-in systems feed counterclockwise, while front-loading bobbin cases are typically set up for clockwise rotation inside the case—follow your machine’s diagram.

10.2 Q: How often should I clean the bobbin case/area?

A: Give the bobbin area a quick brush-out regularly—doing it at each bobbin change helps keep the tension spring clear and consistent. If stitches get loopy or tight, check for lint under the bobbin case spring and lift it out carefully (a thin pin can help). Keeping this area clean reduces nests, jams, and tension hiccups.

10.3 Q: Can I use metal and plastic bobbins interchangeably?

A: No. Use only the bobbin type and material specified for your machine. Guides emphasize that metal and plastic bobbins aren’t universally interchangeable; using the wrong type can cause tension issues or even damage. Pre-wound bobbins can save time only if they match your exact bobbin class and project thread requirements—when in doubt, wind your own.
